55" Floor‑Standing L‑Shaped OLED Transparent Display

See‑through display + intelligent interaction = your virtual greeter

When Transparency Meets

AI Off – it’s like clear glass.

On – a digital human floats in the air, ready to talk and interact.

A 55‑inch OLED transparent panel, a high‑definition camera, and optional AI computing power.

The result: a smart terminal that sees, hears, and speaks.

Key Features

55" OLED transparent panel – 43% transparency, background objects fully visible

2K resolution + 1.07B colors – lifelike digital human appearance

Optional 10‑point capacitive touch – tap, swipe, write with ease

Built‑in camera – supports face recognition, gesture capture, eye contact

Anti‑burn & anti‑image retention – 30,000+ hours continuous operation

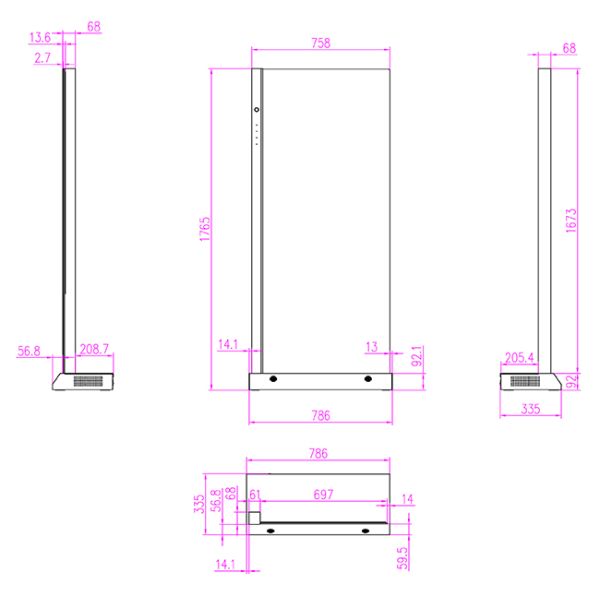

L‑shaped floor stand – stable, space‑saving, ideal for entrances and corners

Optional Android / PC system – easy integration with third‑party AI digital human engines (e.g., iFlytek, SenseTime, custom solutions)

What Can the AI Digital Human Do?

Smart Q&A – answers visitor questions about products, directions, events

Proactive greeting – detects approaching people, waves and says hello

Guided tour – points to real objects behind the screen and explains details

Live data display – shows weather, inventory, queue status, or real‑time updates

Multi‑language support – serves international customers seamlessly

•


  screen parameters
  Panel size	55 inches.	Panel type		OLED
  display area	1209.6 X 680.4mm	external dimensions		1221.5Mm × 699.35mm × 1.78mm (width × height × thickness)
  transmittance	43%	viewing angle		178 °, 178 °
  static contrast	100000:1 (Typ.) Transmission	Dynamic Contrast		200000:1 (Typ.) Transmission
  patchwork	Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/13 (left/right/top/bottom)	screen scale		16:9
  brightness	200-600 (nits)	Best resolution		1920*1080
  Screen life	≥ 30000 hours	power		≤ 190W
  Display color	10-Bit, 1.07B (1B = 1 billion)	Speaker		8Ω/5W * 2
  screen gross weight	Screen weight 2.4kg	Gross weight of the whole machine		to be determined
  environment	Working temperature 1 ℃~ 45 ℃	working humidity		30%~80%
  running time	18 hours x 7 days	Ambient height		(Altitude) 0~ 5000m
  response time	8ms	working voltage		100V-240VAC, 50/60Hz
  Fitting method	frame sticker	Fitting method (optional)		Full fit
  Driver Board
  input interface	HDMI IN	USB		USB 2.0
  DP	DP IN	weight		0.4Kg
  Control signal IN	RS232 serial port (RJ45)	Control signal OUT		RS232 serial port (RJ45)
  function	With splicing function	protect		Anti-afterimage, anti-burn, repair function
  Touch screen parameters: capacitance optional
  touch technology	Capacitive touch technology	positioning accuracy		3Mm
  Installation method	Built-in integrated	writing method		Finger ≥ 5mm
  touch points	10 touch writing	Writing screen medium		5-8Mm tempered high transparency glass
  response speed	≤ 5ms	computer driven		drive-free
  mode of communication	USB	service life		≥ 60 million times
  PC configuration (optional)
  main board	Intel Core
  CPU	4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional)
  Memory	4G/8G/16G-DDR3 (optional)
  Hard disk	SSD120G/240G/480-HDD500G/1T/2T (optional)
  nuclear display	Intel HD Graphics 4000
  Backplane I/O	1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output)
  Operating System	Windows 7/Windows 10 operating system
  Android configuration (optional)
  Main board model	3568/3288/3588
  Memory	2G/4G/8G optional
  storage	16G/32G/64G/128G optional
  interface	1 × USB2.0, 1 × USB3.0, 1 × DC_IN, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI, 1 × 3.5 headphone socket, 1 × TFT socket
  Packing and packing list
  Package size	Honeycomb box: 190 * 48 * 93CM		Air box: 183 * 42 * 84CM
  Weight information	Bare metal weight: 67KG		Packaging weight: Bare metal + air box: 127KG Bare metal + honeycomb box: 80KG
  name	With PC/Android
  	Specifications	quantity	Remarks
  transparent display	55 inch OLED transparent screen	1 piece
  system	Customized according to actual needs (built-in)	1 set
  remote control	Universal version (without battery)	1
  Power cord	National standard 1.5 meters	Article 1
  HDMI extension cable Note ②	optional	Article 1
  Touch the USB extension cable Note ②	optional	Article 1
  HDMI signal cable Note ②	optional	Article 1
  Warranty card certificate	Chinese version	1 sheet
  Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment.
